规格$Specification 2260x1060x520/820mm$2260x1060x520/820mm规格$Specification 2260x1060x520/820mm$2260x1060x520/820mm
PARAMETER
-
Name

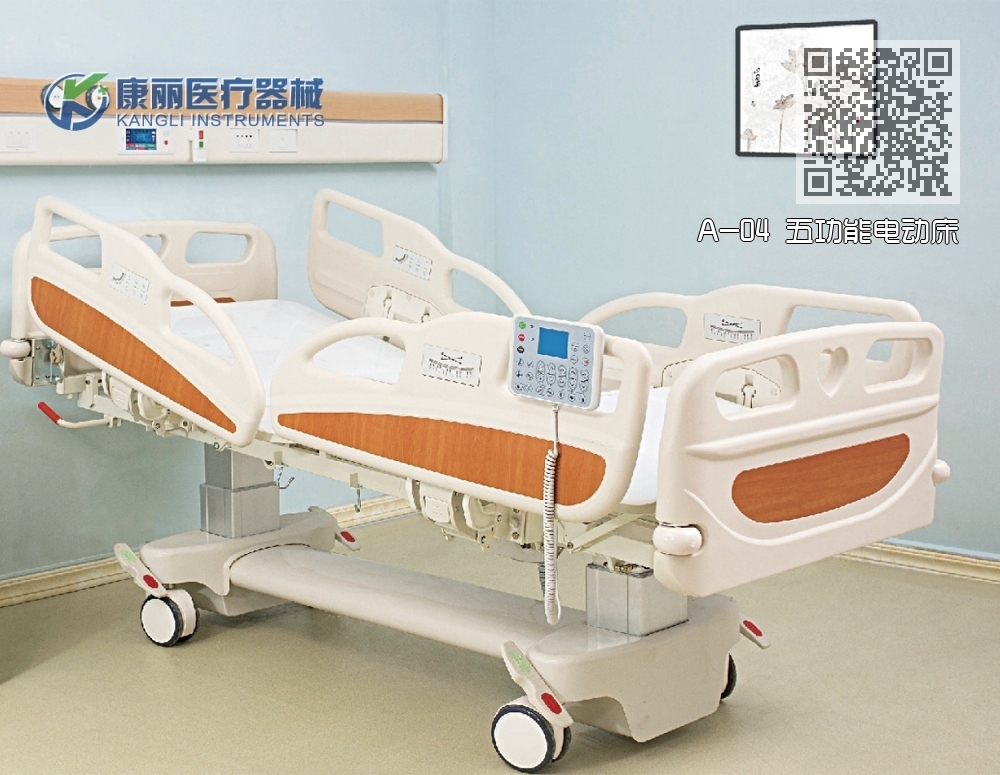

名称：A-04 五功能电动床A-04 Five function electric bed
-
guige
规格：2260x1060x520/820mm2260x1060x520/820mm
平型Flat type
背部上升The back rises
膝部上升The knees rise
高低升降Up and down
背膝联动Back-to-knee linkage
背部升降:0°-75°±5°;腿部升降:0°-45°±5°前后倾斜:0-12°±2°;左右侧翻15°±2°
床体可载重≥ 240kg;背板动态载重≥170kg
带液晶屏护士操作器，大图标按键，实现床体操控及锁定功能
侧护栏控制器，头部护栏两侧均设置体位控制器
具备急停开关，一键锁定所有功能，可满足高标准安全需要
床体下方带有豪华底罩，方便清洁且具有防尘功效，整体提升病床豪华档次
脚轮采用进口材质6 寸双面中控脚轮
$
Backlifting:0°-75”±5°;Leg lifting:0°-45°±5°Forward and backward tilt: 0-12"±2°; Flip left and right by 15 ° ± 2°
The bed can carry a load of ≥ 240kg; the dynamic load of the backboardis ≥170kg;
Equipped with a LCD nurse operator and large icon buttons, it enablescontrol and locking functions for bed exercises
Side guardrail controller, position controllers are installed on both sidesof the head guardrail
Equipped with an emergency stop switch and one click locking of all functions.it can meet high standard safety requirements;
There is a luxurious bottom cover under the bed , which is easy to clean andhas dust-proof effect, enhancing the overall quality of the hospital bed Luxurygrade;
The wheels are made of imported material and are 6-inch double-sidedcentral control wheels.
QUALITY ASSURANCE●●●
背部上升
—
Back up
护理床等设备的背部区域可电动升起
The back area of the nursing bed can be electrically raised
方便使用者坐起，提升日常活动便利性
Convenient for users to sit up and enhance activity convenience
QUALITY ASSURANCE●●●
膝部上升
—
Knee up
可以单独调整膝部角度，缓解腿部疲劳
You can adjust the knee angle separately to relieve leg fatigue
改善腿部血液循环
Improve blood circulation in the legs
QUALITY ASSURANCE●●●
高低升降
—
High and low lifting
具有高度可调功能，根据患者不同需求进行调整
Highly adjustable function, adjustable according to needs
提升使用者的舒适度
Enhance user comfort
QUALITY ASSURANCE●●●
背膝联动
—
Back knee linkage
背部升起的同时，膝盖部位也相应调整角度
Raise your back and adjust the angle of your knees accordingly
维持身体稳定，提升舒适度
Maintain body stability and enhance comfort
