规格$specification 1130×635×1280mm$1130×635×1280mm规格$specification 1130×635×1280mm$1130×635×1280mm
PARAMETER
-
Name

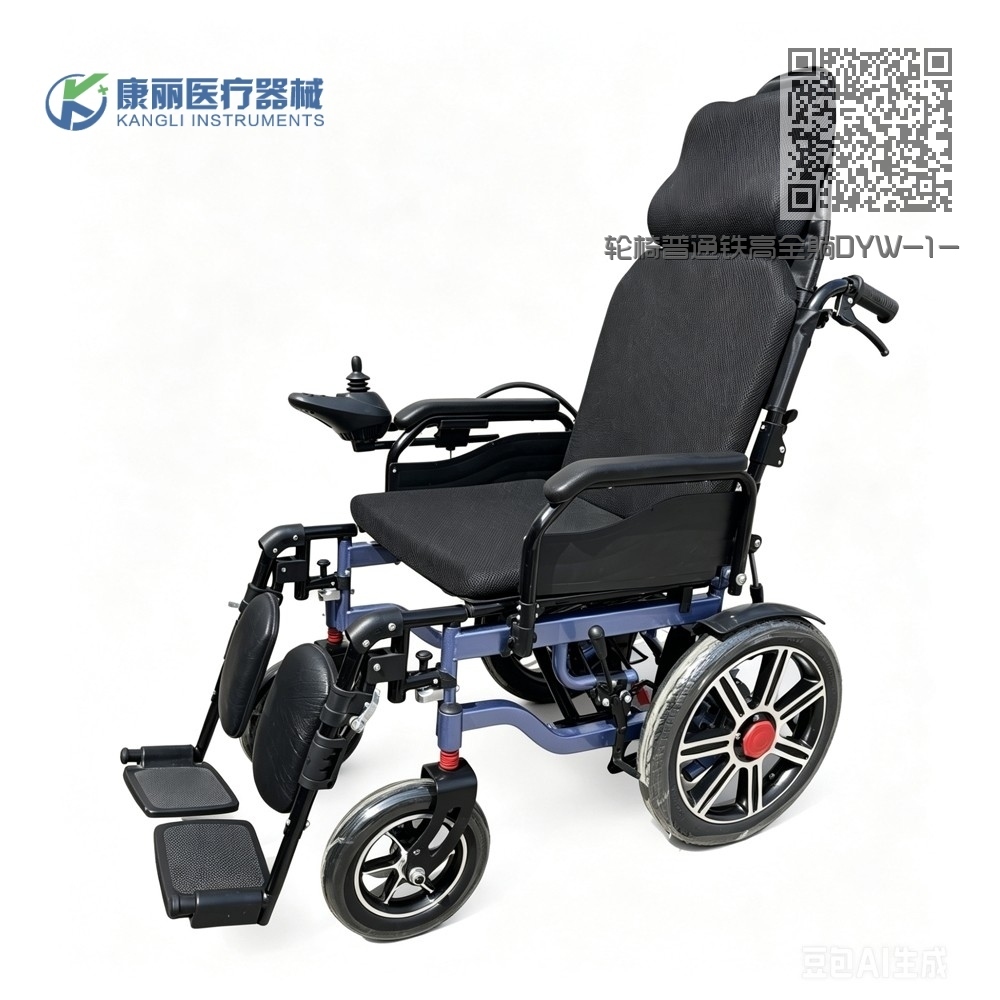

名称：轮椅普通铁高全躺DYW-1-CTWheelchair, ordinary, high-speed, fully reclined, DYW-1-CT
-
guige
规格：1130×635×1280mm1130×635×1280mm
总长：1130mm
总宽：635mm
总高：1280mm
包装尺寸(L*W*H)：850*400*720
折叠宽度：510mm
靠背高度：400mm
座位深度：440mm
座位宽度：455mm
前轮规格：10寸PVC免充气胎，铝合金轮毂
后轮规格：16寸铝轮毂
大载荷：100KG
纸箱：3.82KG
材质：钢管
表面处理：喷涂/烤漆
能否倾斜、折叠：可以
扶手、手把材质：可掀扶手
脚托类型、材质：可拆卸内外旋转挂脚，高分子聚合材质高强度踏板
座垫、靠背材质：阻燃牛筋布，配安全带
刹车系统：电子刹车
控制器系统：前后可调，左右可互换
电机规格/数量：有刷电机
电池类型/规格：可拆卸锂电池或铅酸电池（24V/20AH或24V/12AH）
续航距离：12A铅酸12KM/20A铅酸20KM/
大速度：7KM/H
爬坡大角度：8-9度
转弯半径：1.3M
是否有防翻轮：有
保修期：一年
其他突出特点描述：可拆卸椅背、做工优良、人体力学设计、折叠握带方便、美观、坚固
$
Total length: 1130mm
Total width: 635mm
Total height: 1280mm
Packaging size (L * W * H): 850 * 400 * 720
Folding width: 510mm
Backrest height: 400mm
Seat depth: 440mm
Seat width: 455mm
Front wheel specifications: 10 inch PVC non inflatable tire, aluminum alloy wheel hub
Rear wheel specifications: 16 inch aluminum wheels
Large load: 100KG
Carton: 3.82KG
Material: Steel Pipe
Surface treatment: spraying/baking paint
Can it be tilted or folded: Yes
Material of armrest and handle: detachable armrest
Foot support type and material: detachable inner and outer rotating hanging feet, high-strength pedal made of polymer material
Seat cushion and backrest material: flame retardant cowhide fabric, equipped with seat belts
Braking system: electronic brake
Controller system: adjustable front and rear, interchangeable left and right
Motor specifications/quantity: brushed motor
Battery type/specification: Removable lithium battery or lead-acid battery (24V/20AH or 24V/12AH)
Range: 12A lead-acid 12KM/20A lead-acid 20KM/
High speed: 7KM/H
Climbing at a large angle of 8-9 degrees
Turning radius: 1.3M
Are there anti rollover wheels: Yes
Warranty period: One year
Other prominent features: detachable backrest, excellent workmanship, ergonomic design, convenient folding grip, beautiful appearance, sturdy
