2250x1050x480/800mm
-
2250x1050x480/800mm
规格$Specification 2250x1050x480/800mm$ 2250x1050x480/800mm规格$Specification 2250x1050x480/800mm$ 2250x1050x480/800mm
PARAMETER
-
Name

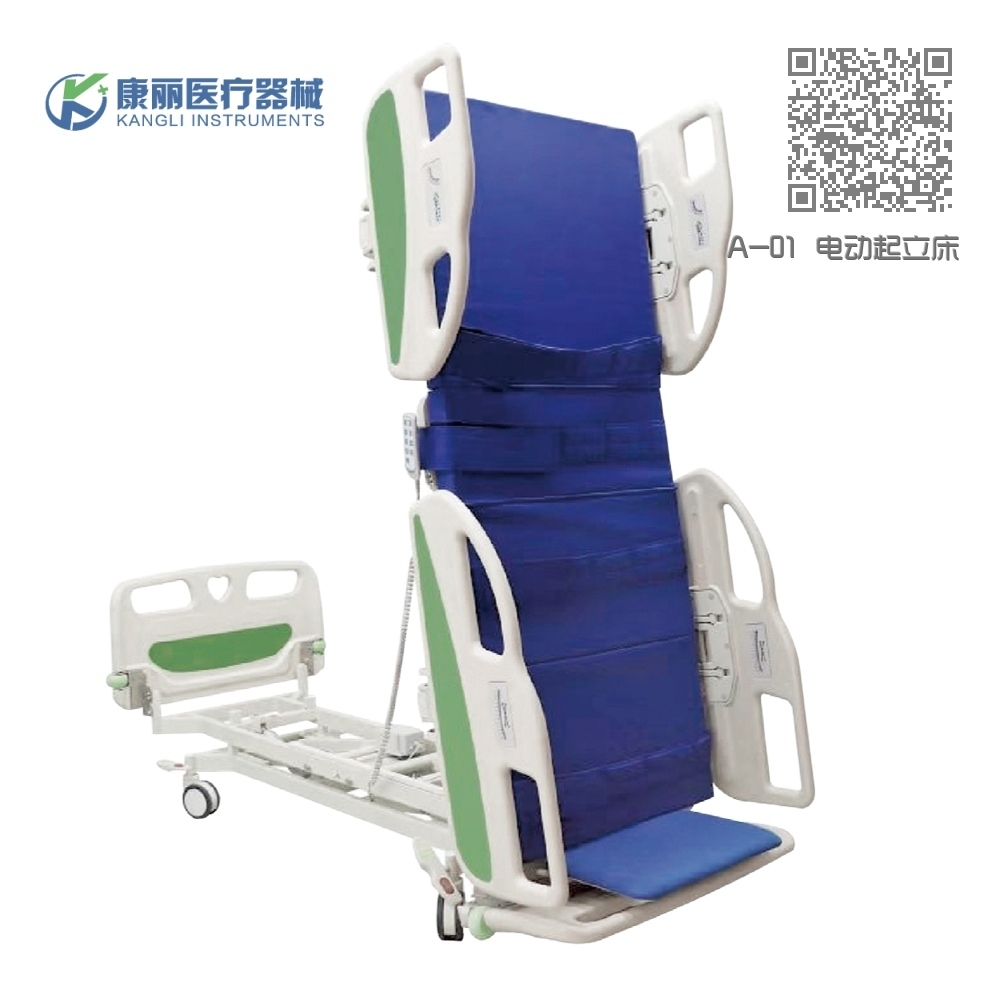

名称：A-01 电动起立床A-01 Electric standing bed
-
guige
规格： 2250x1050x480/800mm2250x1050x480/800mm
平型Flat type
背部上升The back rises
膝部上升The knees rise
高低升降Up and down
背膝联动Back-to-knee linkage
床体可载重≥ 240kg;背板动态载重≥ 170kg;
床面起立 0-80°±5°;
床母采用 30x60x1.5mm 矩型碳素钢管焊接;
床面板采用不小于 1.2mm 冷轧钢板，整体模压成型，四角平滑完整，提高了床板的强度
床体防锈要求:内外防锈处理工艺---双重涂层:电泳底漆+树脂粉末涂层，真正达到内外防锈
采用知名品牌24V直流电机,与EMI电磁波具有兼容性，防水、不漏电、抗电磁不干扰呼吸机、心电监护等设备工作，满足临床急救需求
绿色健康环保产品，采用抗菌粉末涂料，对微生物大肠菌和金黄色葡萄球菌具有很强的抗菌作用。
$
The bed can carry a load of ≥240kg; the dynamic load of the backboard is≥170kg;
Bed standing angle:0-80° ±5°
The bed body is made of30 x 60 x 1.5mm recangular carbon steel pipes welded together
The bad panel is made of cold-rolled steel plate with a thickness of not less than 1.2mm, andis molded as a whole,The four corners are smooth and complete, which improves the strengthof the bed panel
Bed rust prevention requirements: Interal and external rust prevention treatment process dual coating: electrophoretic primer+resin powder coating, truly achieving intemal and extemalrust prevention:
Adopting a well-known brand 24V DC motor, it is oompatible withEMl electromagnetic waves,waterproof, non leakage, anti electromagnetic, non interfering with ventilators andECG monitors.Work on protective equipment to meet clinical emergency needs
QUALITY ASSURANCE●●●
背部上升
—
Back up
可使护理床等设备背部区域升起
Can raise the back area of nursing beds and other equipment
有利于使用者进食、缓解呼吸困难等
Beneficial for users to eat, relieve breathing difficulties, etc
QUALITY ASSURANCE●●●
膝部上升
—
Knee up
可以单独调整膝部角度，缓解腿部疲劳
You can adjust the knee angle separately to relieve leg fatigue
改善腿部血液循环
Improve blood circulation in the legs
QUALITY ASSURANCE●●●
高低升降
—
High and low lifting
具有高度可调功能，根据患者不同需求进行调整
Highly adjustable function, adjustable according to needs
提升使用者的舒适度
Enhance user comfort
QUALITY ASSURANCE●●●
背膝联动
—
Back knee linkage
背部升起的同时，膝盖部位也相应调整角度
Raise your back and adjust the angle of your knees accordingly
维持身体稳定，提升舒适度
Maintain body stability and enhance comfort
